Product Description

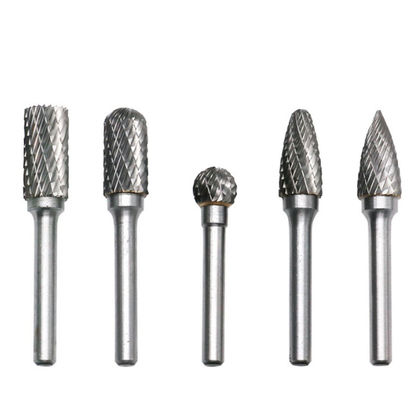

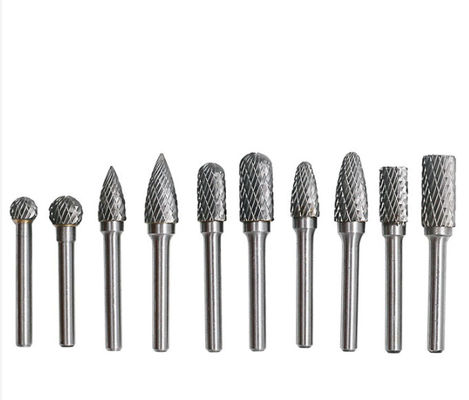

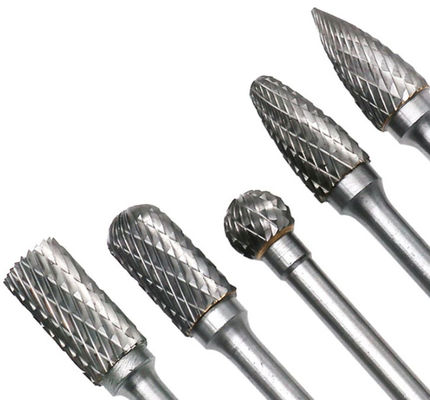

The Rapid Abrasives Cylindrical Double Cut Carbide Burr is built to grind flat surfaces on metal and non-ferrous metal applications.
Build
Excellent for light to medium material removal.
This solid carbide burr is double cut with a chisel tooth cutting pattern that produces small chips instead of long, sharp slivers which help to finish the metal surfaces faster, eliminates loading and minimizes chatter to provide a smooth cutting experience.
Operation
Moving the burr over the surface gradually will help remove only the material wanted and will help prevent the burr from making divots and unsightly marks.
To extend the life of the burr, only apply enough pressure to let the burr do the work. This eliminates unnecessary wear to the burr.
Technical date
| S.N. | MATERIAL |
| 1a | Steel |
| 1b | Hard steels |
| 2 | Stainless steel |
| 3 | Cast iron |
| 4 | Titanium |
| 5 | Nickel |
| 6 | Copper/Copper alloys |
| 7 | Aluminum |
| 8 | Plastics |
| 9 | Cement |
Guide to running speeds
|
mat nr. MAX RPM |
3mm/0.123" 90,000 |
6mm/0.250" 50,000 |
10mm/0.375" 40,000 |
12mm/0.500" 35,000 |
16mm/0.625' 25,000 |
| 1a | 60,000-80,000 | 35,000-45,000 | 22,500-35,000 | 20,000-30,000 | 15,000-20,000 |
| 1b | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
| 2 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
| 3 | 45,000-80,000 | 22,500-45,000 | 15,000-35,000 | 11,000-30,000 | 9,000-20,000 |
| 4 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
| 5 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
| 6 | 45,000-80,000 | 22,500-45,000 | 15,000-35,000 | 11,000-30,000 | 3,000-20,000 |
| 7 | 30,000-80,000 | 15,000-45,000 | 10,000-35,000 | 7,000-30,000 | 6,000-20,000 |
| 8 | 30,000-80,000 | 15,000-45,000 | 10,000-35,000 | 7,000-30,000 | 6,000-20,000 |
| 9 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
Application:
It can be processed cast iron, cast steel, carbon steel, alloy steel, stainless steel, copper, aluminum and other metals, and marble, jade, bone and other non-metallic. Processing hardness up to HRA85.
Advantage:
1. 10 years professional experience.
2. 100% new material.
3. Be more durable.
4. OEM & ODM Service.
5. All payment terms supported.
6. Fast delivery time & Convenient Transportation
Packing
About us
Zigong (Chengdu) Cemented Carbide Co., Ltd. is a subsidiary of Zigong Cemented Carbide Co., Ltd., which specializes in the production of cemented carbide rotating tools and cemented carbide materials. We have two branches, one is located in Chengdu City, Sichuan Province, and the other is located in Zigong City, Sichuan Province.
Founded in 2007 in Zigong City, Sichuan Province. In China, we are an exclusive factory with production equipment from raw materials to finished tools. Including inclined wet grinding, pressing, low pressure sintering, five-axis CNC, electronic tool surface scanner, hardness tester and TRS. The main products include cemented carbide end mills / cemented carbide end mill blanks / cemented carbide tool holders and cemented carbide nozzles. We have exported to North America, Europe, Asia, etc. We helped make world-class cheap products.
