10pcs 1/8" Shank Diameter Tungsten Carbide Rotary Burr with 3*6 mm Head Size for Precision Metalworking

Nome da marca:	KING TOOLS
Número do modelo:	SA/AC/SD/SE/SF/SG/SH/SL/SM/SN
MOQ:	10
preço:	$1.59-3.59

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem:

Sichuan, China

Diâmetro de haste:

1/8 "

Diâmetro da cabeça:

3 a 25 mm

Comprimento da cabeça:

6 a 36 mm

Comprimento total:

38-81 mm

Material:

Carboneto de tungstênio

dureza haste:

HRA 89-92.5

Faixa de velocidade:

15000-45000 voltas/min

Rpm máximo:

70000

RPM sugerido:

25000-50000

Dureza da cabeça:

90-91 HRA

Teste padrão do cortador:

Corte Duplo (Single/Aluma disponível)

Quantidade por conjunto:

10 unidades

Tipo de quebra-chips:

Único/dobro/Aluma/Diamond Cut

Dimensão:

3*6mm / 0,12*0,24 polegadas

Fonte de energia:

elétrico

Destacar:

1/8" Shank Diameter Carbide Rotary Burr

Tungsten Carbide Material Rotary File Burr

3*6 mm Head Size Tungsten Carbide Burr

Descrição do produto

Product Overview

Product Name	10pcs 1/8" Shank Dia Tungsten Carbide Rotary File Burr Cutter 3×6 mm Porting Tools
Brand	KINGTOOLS
Material	Pure Tungsten Carbide
Shank Hardness	HRA 89-92.5
Shank Diameter	3mm/6mm/8mm/10mm/12mm/14mm/16mm...
Speed of Tool	15,000-45,000 RPM
Grade	YG6, YG8, YG8C, YG11C, YG15C...
Certificate	ISO9001:2008
Model	Customized carbide burrs
MOQ	2 Pieces
Free Sample	Provide Free shipping

Product Specifications

10-Piece 3×6mm Carbide Burr Set

Note: The sample is 1 piece, 10 pieces = 1 set (If you need 1 set, please select quantity as 10)

Customization Available: 10pcs 2.35×6mm, 20pcs 3×3mm, 10pcs 3×4mm, 10pcs 3×5mm carbide burr sets

Material: Tungsten Steel Hard Carbide
Cutter Pattern: Double Cut (aluminum cut / single cut also available)

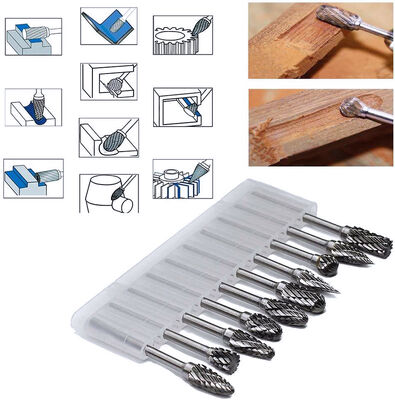

Suitable for: Drilling, Metal Carving, Engraving, Polishing

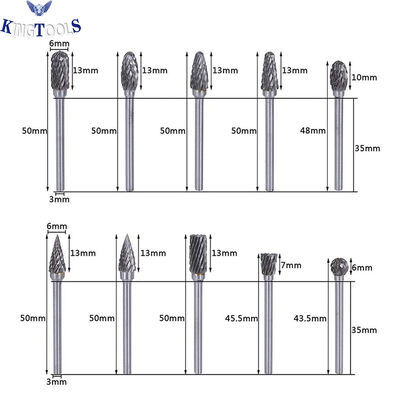

Dimension: 3×6mm / 0.12×0.24 inch (Approx.)
Suggested RPM: 25,000-50,000, Max RPM 70,000, HRA ≥ 85

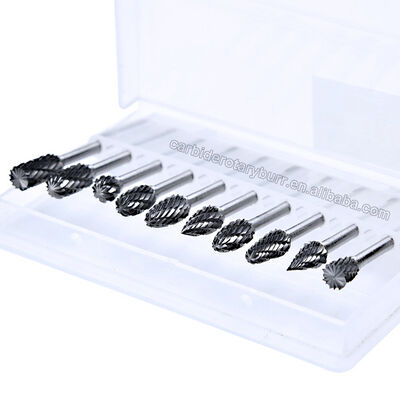

Quantity: 10 pieces per set in storage box

Our carbide bur line includes more than 175 individual burs and one 10-piece kit and 5-piece kit. Overall bur lengths range for various applications. Carbide burs are used in many industries including automotive, aerospace, foundry, power station and engineering for mold and pattern making, die sinking, tool making and maintenance.

Cut Type Applications

Single-cut burs: General purpose work with good material removal
Double-cut burs: Produce smaller chips for greater operator control on stainless steels and ferrous materials
Aluma-cut burs: Wide flute design for easy stock removal without loading on nonferrous and soft materials
Standard-cut burs: Widely used with fine finish results

Product Gallery

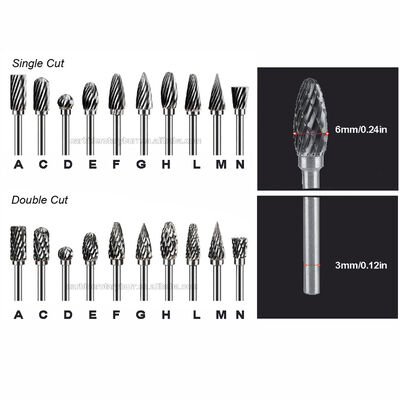

Available Burr Types

Name	Type	Cut	Material	Product Process	Head Hardness	LOGO
Cylindrical	A	Standard/Single/Double/Aluma	Tungsten carbide/YG7/TCT	CNC	90-91HRA	available
Cylindrical End Cut	B	Standard/Single/Double/Aluma	Tungsten carbide/YG7/TCT	CNC	90-91HRA	available
Cylindrical Radius End	C	Standard/Single/Double/Aluma	Tungsten carbide/YG7/TCT	CNC	90-91HRA	available
Ball Shape	D	Standard/Single/Double/Aluma	Tungsten carbide/YG7/TCT	CNC	90-91HRA	available
Oval	E	Standard/Single/Double/Aluma	Tungsten carbide/YG7/TCT	CNC	90-91HRA	available
Tree Shape Radius End	F	Standard/Single/Double/Aluma	Tungsten carbide/YG7/TCT	CNC	90-91HRA	available
Tree Pointed Ends	G	Standard/Single/Double/Aluma	Tungsten carbide/YG7/TCT	CNC	90-91HRA	available
Flame Shape	H	Standard/Single/Double/Aluma	Tungsten carbide/YG7/TCT	CNC	90-91HRA	available
Cone Shape With 60°	J	Standard/Single/Double/Aluma	Tungsten carbide/YG7/TCT	CNC	90-91HRA	available
Cone Shape With 90°	K	Standard/Single/Double/Aluma	Tungsten carbide/YG7/TCT	CNC	90-91HRA	available
Taper Radius End	L	Standard/Single/Double/Aluma	Tungsten carbide/YG7/TCT	CNC	90-91HRA	available
Cone	M	Standard/Single/Double/Aluma	Tungsten carbide/YG7/TCT	CNC	90-91HRA	available
Inverted Cone	N	Standard/Single/Double/Aluma	Tungsten carbide/YG7/TCT	CNC	90-91HRA	available
Disc Type	W	Standard/Single/Double/Aluma	Tungsten carbide/YG7/TCT	CNC	90-91HRA	available
